ERC926BA

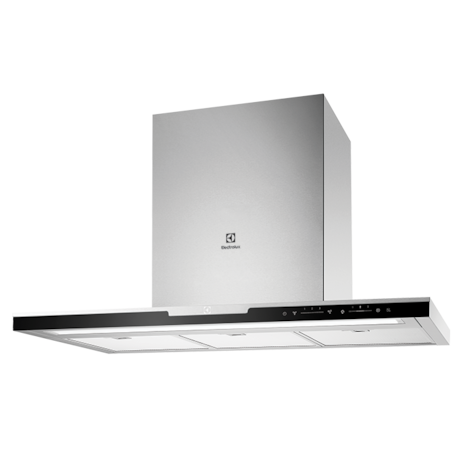

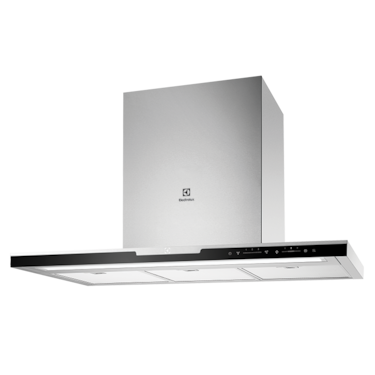

90cm canopy rangehood

90cm canopy rangehood is rated 4.0 out of 5 by 1.

895W x 500D x 1158H(mm)

90cm black glass and stainless steel canopy rangehood with maximum airflow of 1000m3/h, delay off setting and low energy, high performing dimmable LED strip lighting.

Key Benefits

Maximise your airflow

Remove odours and vapours quickly and efficiently with a high airflow rate of 1000m3/h

Keep the noise down

With noise levels as low as 57dB(A), keep the conversation going smoothly when entertaining guests

Dimmable Low Energy LED Light Bar

Adjustable lighting levels on this rangehood offers high levels for maximum illumination when required and a lower level for ambient lighting when cooking is complete.

Touch on glass controls

With its position above the cooking area of your kitchen the rangehood has been designed for easy cleaning, the controller is a touch on glass panel for a quick wipe clean maintenance.

Key Features

Max airflow of 1000m3/h

Operation noise as low as 57dB(A)

Delay off function

Dimmable Low Energy LED Light Bar

Multi-layer filters

Dishwasher safe filters

3 speed fan + Boost Function

Touch on glass controls

Filter Clean Notification

Specifications

PRODUCT PROFILE
Design family (eline)	Inspiration
Nominal width	900
Finish of Rangehood	stainless steel with black glass panel

MOTOR/FAN
Number of fans	1
Number of fans speeds	4
Variable speed control	Yes
Type of motor	centrifugal
Perimeter extraction	No
Auto fan timer	Yes
Maximum airflow M3/Hr	1000
Noise level dB high	68
Noise level dB low	57

DIMENSIONS
Total product height (mm)	1158
Total product width (mm)	895
Total product depth (mm)	500
Diameter of ducting (mm)	200
Minimum installation height from cooking surface Gas (mm)	650
Minimum installation height from cooking surface Electric (mm)	600
Flue cover depth (mm)	320
Flue cover width (mm)	400

CONTROLS
Control panel	touch on glass controls
Safety/ display indicators	auto thermal cutout safety switch,grease filter saturation indicator
LED speed display	Yes
Removal front fascia	No

FILTERS
Number of filters	3
Type of filter	multi layer stainless steel

LIGHTS
Number of lights	1
Wattage of light	8.5
Type of light	dimmer-controlled LED light

DUCTING / RECIRCULATION
Ducting	optional accessory
Top or rear duct hole	top
Recirculation option	Yes
Recirculation kit	optional accessory
Front recirculating option	No
Optional extension flue	Yes
Type of filter	Carbon
Number of optional filters required	two

Downloads

User Manual

Compliance Cert.

Dimension Sheet

Accessories

Rangehood Ducting - 90 Degree Bend (200mm)

Rangehood Ducting - 200mm Round Flue Kit

Rangehood Ducting - Galvabond Rood Cowl (200mm)

Rangehood Ducting - Clamp Worm Drive (200mm)

Rangehood Ducting - SQ Wall Vent (200mm) Kit

Ranghood Ducting - Flue Joiner (200mm)

Rangehood Ducting - Flexible Flu (200mm)

Key Benefits

Maximise your airflow

Remove odours and vapours quickly and efficiently with a high airflow rate of 1000m3/h

Keep the noise down

With noise levels as low as 57dB(A), keep the conversation going smoothly when entertaining guests

Dimmable Low Energy LED Light Bar

Adjustable lighting levels on this rangehood offers high levels for maximum illumination when required and a lower level for ambient lighting when cooking is complete.

Touch on glass controls

With its position above the cooking area of your kitchen the rangehood has been designed for easy cleaning, the controller is a touch on glass panel for a quick wipe clean maintenance.

Key Features

Max airflow of 1000m3/h

Operation noise as low as 57dB(A)

Delay off function

Dimmable Low Energy LED Light Bar

Multi-layer filters

Dishwasher safe filters

3 speed fan + Boost Function

Touch on glass controls

Filter Clean Notification

Specifications

PRODUCT PROFILE
Design family (eline)	Inspiration
Nominal width	900
Finish of Rangehood	stainless steel with black glass panel

MOTOR/FAN
Number of fans	1
Number of fans speeds	4
Variable speed control	Yes
Type of motor	centrifugal
Perimeter extraction	No
Auto fan timer	Yes
Maximum airflow M3/Hr	1000
Noise level dB high	68
Noise level dB low	57

DIMENSIONS
Total product height (mm)	1158
Total product width (mm)	895
Total product depth (mm)	500
Diameter of ducting (mm)	200
Minimum installation height from cooking surface Gas (mm)	650
Minimum installation height from cooking surface Electric (mm)	600
Flue cover depth (mm)	320
Flue cover width (mm)	400

CONTROLS
Control panel	touch on glass controls
Safety/ display indicators	auto thermal cutout safety switch,grease filter saturation indicator
LED speed display	Yes
Removal front fascia	No

FILTERS
Number of filters	3
Type of filter	multi layer stainless steel

LIGHTS
Number of lights	1
Wattage of light	8.5
Type of light	dimmer-controlled LED light

DUCTING / RECIRCULATION
Ducting	optional accessory
Top or rear duct hole	top
Recirculation option	Yes
Recirculation kit	optional accessory
Front recirculating option	No
Optional extension flue	Yes
Type of filter	Carbon
Number of optional filters required	two

Downloads

User Manual

Compliance Cert.

Dimension Sheet

Accessories

Rangehood Ducting - 90 Degree Bend (200mm)

Rangehood Ducting - 200mm Round Flue Kit

Rangehood Ducting - Galvabond Rood Cowl (200mm)

Rangehood Ducting - Clamp Worm Drive (200mm)

Rangehood Ducting - SQ Wall Vent (200mm) Kit

Ranghood Ducting - Flue Joiner (200mm)

Rangehood Ducting - Flexible Flu (200mm)

Rated 4 out of 5 by Lyndon from Fantatic Rangehood with one flaw The rangehood itself is a fantastic product and does everything you would expect. The only major flaw with this rangehood is due to the plastic cover for the LED light bar. This plastic cover basically renders the LED light bar useless as it blocks out most of the light coming through and instead of getting a strong LED illumination of your cooktop you get a rather dim blue hue which is easily out done by any lighting in the kitchen.

Date published: 2017-04-29
