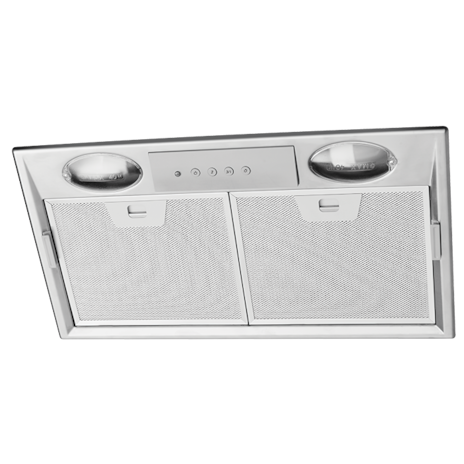

ERI512SA

52cm integrated rangehood

522W x 284D x 305H(mm)

52cm stainless steel integrated rangehood with maximum airflow of 650m3/hr, push button electronic control and 3 speed twin fan motor plus boost.

Key Features

Max airflow of 650m3/h

Operation noise as low as 52dB(A)

Multi-layer filters

Dishwasher safe filters

LED lighting

3 speed fan + Boost Function

Electronic pushbutton controls

Key Benefits

Maximise your airflow

Remove odours and vapours quickly and efficiently with a high airflow rate of 650m3/h

Keep the noise down

With noise levels as low as 52dB(A), keep the conversation going smoothly when entertaining guests.

Clear visibility for complete control

Long lasting LED lights illuminates the complete cooking surface giving you full control over your delicious cuisine.

Specifications

PRODUCT PROFILE
Domestic warranty details (yrs)	2
Nominal width	600
Finish of Rangehood	stainless steel

MOTOR/FAN
Number of fans	2
Number of fans speeds	4
Variable speed control	Yes
Type of motor	centrifugal
Perimeter extraction	No
Auto fan timer	No
Maximum airflow M3/Hr	650
Noise level dB high	70
Noise level dB low	52

DIMENSIONS
Total product height (mm)	305
Total product width (mm)	522
Total product depth (mm)	284
Diameter of ducting (mm)	150
Minimum installation height from cooking surface Gas (mm)	650
Minimum installation height from cooking surface Electric (mm)	600

CONTROLS
Control panel	electronic push button
LED speed display	No
Removal front fascia	No

FILTERS
Number of filters	2
Type of filter	multilayer aluminum micromesh filters

LIGHTS
Number of lights	2
Wattage of light	4
Type of light	LED

DUCTING / RECIRCULATION
Ducting	yes
Top or rear duct hole	top
Recirculation option	Yes
Front recirculating option	No
Optional extension flue	No
Ducting diameter (mm)	150

Downloads

User Manual

Electrolux Rangehood ERI512SA_ERI712SA User Manual

PDF

Compliance Cert.

ERI512SA Compliance Certificate

PDF

Installation Guide

Electrolux Rangehood ERI512SA_ERI712SA Installation Manual

PDF

Dimension Sheet

Electrolux Rangehoods Dimension Sheet

PDF
